Trail Segments

Trail Segments show the distances between points along a trail, route, or track. They're helpful for planning a route, and for checking on the trail how far it is to the next campsite or water source.

If you're on the trail when you open trail segments, Topo Maps+ shows distances from your location instead of from the trailhead.

How to view trail segments

  1. Tap a trail, route, or track on the map.

  2. Tap Segments.

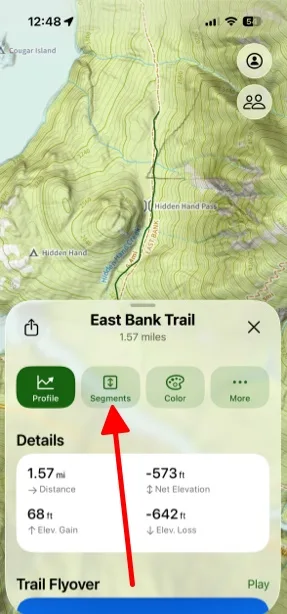

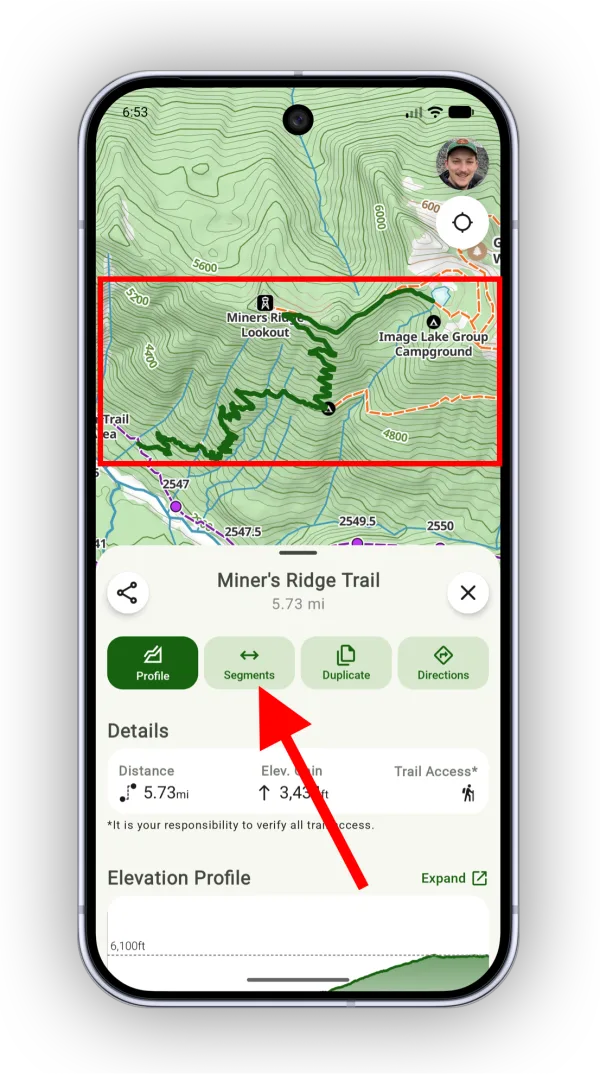

    The Segments button next to Profile in the sheet for a trailThe Segments button next to Profile in the sheet for a trail

Trail Segments requires a Pro subscription. Without one, you see a preview with an Upgrade to Pro button.

List and horizontal views

Switch views with the control at the bottom of the screen:

  • List shows each point along the trail with its elevation, and the distance, gain, and loss from the starting point. The line above the list says which point the distances are measured from. Tap any point to measure from there instead. The map moves to it. Tap View to open a waypoint, POI, or photo.

    Trail segments in list view, with the filter chips, the Showing distances from line, Reverse Direction, and each point's elevation, distance, gain, and loss
    Shown on iPhone — Android looks slightly different.
  • Horizontal lets you swipe between points. The map follows along, and the card below shows the Origin, Distance, Progress, Elevation, Elev. Gain, and Elev. Loss. Tap the center point to measure from it.

    Trail segments in horizontal view, with the Origin, Distance, Progress, Elevation, Elev. Gain, and Elev. Loss card
    Shown on iPhone — Android looks slightly different.

Turn on Reverse Direction to measure the other way along the trail.

Switch between two views using the icons in the top-right corner:

  • List view shows each point on the trail in a list. Tap any entry to see distances from that point instead of from the start of the trail.

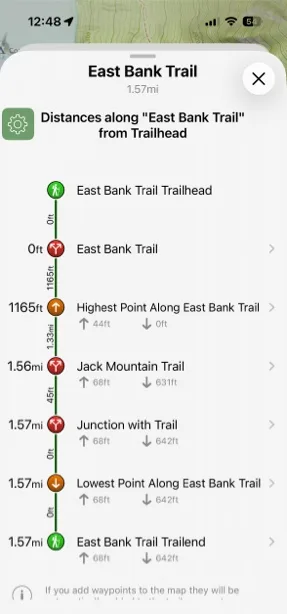

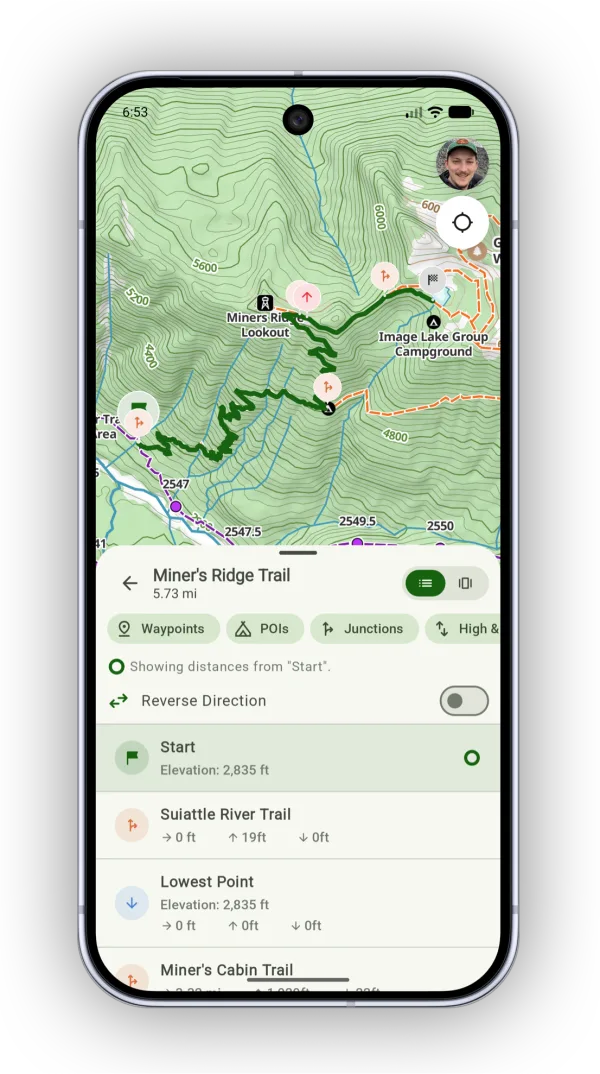

    Trail segments in list view, with distances between points
    Shown on Android — iPhone looks slightly different.
  • Horizontal view is a trail preview: swipe or tap between points and see each one on the map.

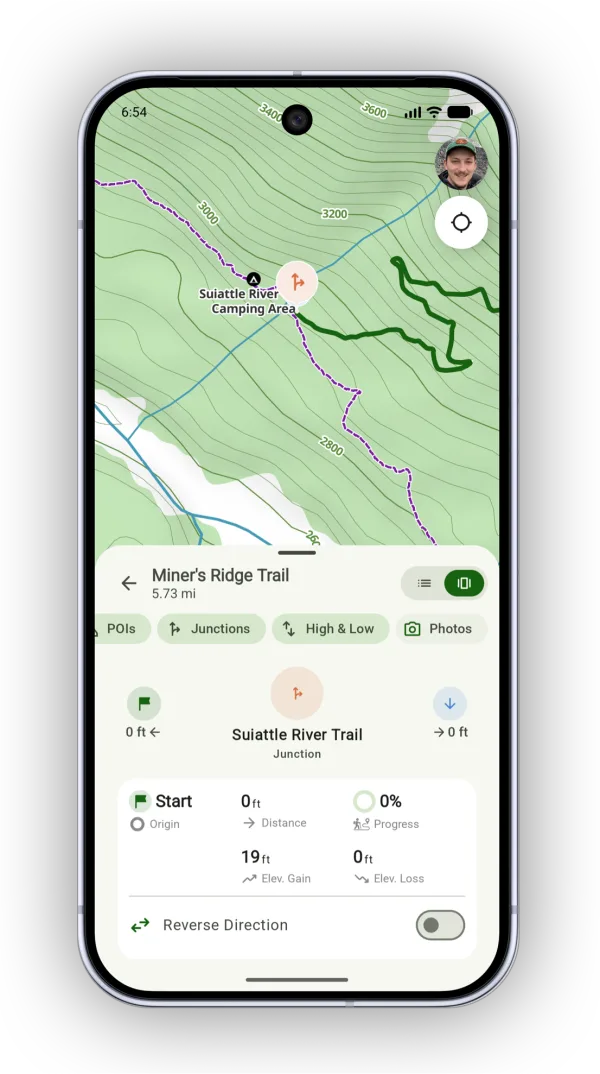

    Trail segments in horizontal view, with the Origin, Distance, Progress, Elevation, Elev. Gain, and Elev. Loss card
    Shown on Android — iPhone looks slightly different.

Filter which points show

The chips at the top of the screenBelow the trail name are filter chips that change which points along the trail are listed: Waypoints, POIs, Junctions, High & Low, and Photos. They're all on by default except Photos, which needs photo access to be turned on.

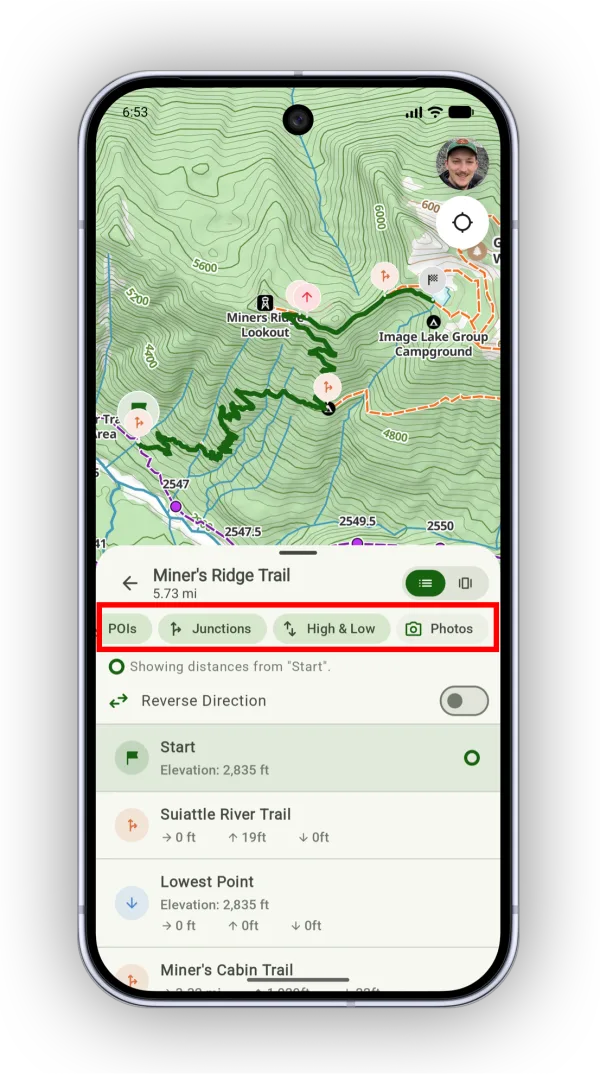

The filter chips, including POIs, Junctions, High & Low, and PhotosThe filter chips, including POIs, Junctions, High & Low, and Photos

Updated October 21, 2026
