Topo Maps+ app iconTopo Maps+

Exporting GPX & KML Files

Using the web app? Exporting Data on the Web App

Exporting creates a GPX or KML file you can send to friends or colleagues and open in almost any other mapping app. With an Elite subscription, you can also export a Shapefile or GeoJSON file. To send a link instead of a file, see Sharing Topo Maps+ Data.

How to export a trail or point of interest

Tap a trail or point of interest on the map, tap the share icon on its details, then tap Export Route for a trail, or Export Point of Interest for a placeExport.

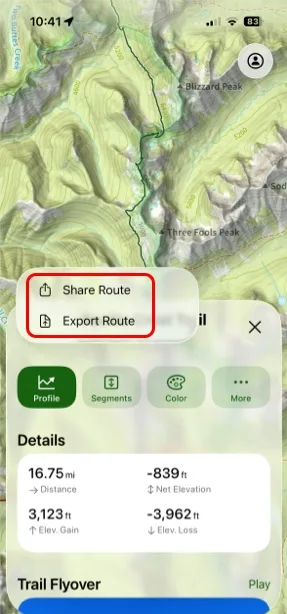

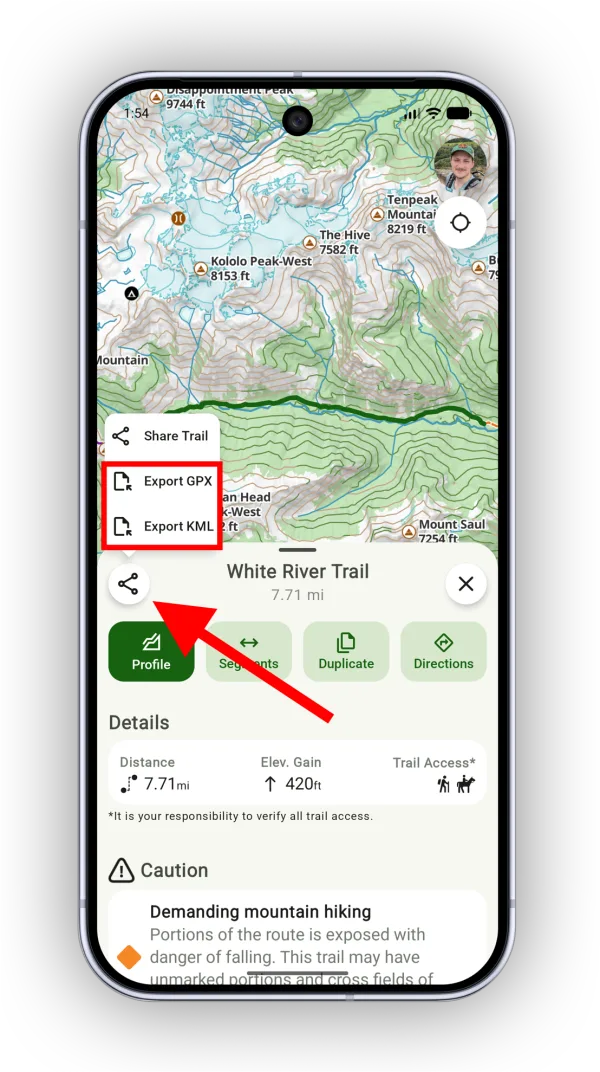

Export options on a trail's detailsExport options on a trail's details

How to export your own routes, waypoints, and regions

You can export a single item the same way as a trail: open it, tap the share icon, and tap Export Route, Export Waypoint, or Export RegionExport. To export several items at once:

  • Select multiple items: Tap your account button, tap a list such as Routes, tap the More (⋯) button next to the search fieldMore/Checkmark icon, then tap Select & Edit. Select the items you want, then tap Edit Selected Items and Exportexport them together.

  • Export a folder: Tap your account button, then tap Folders.

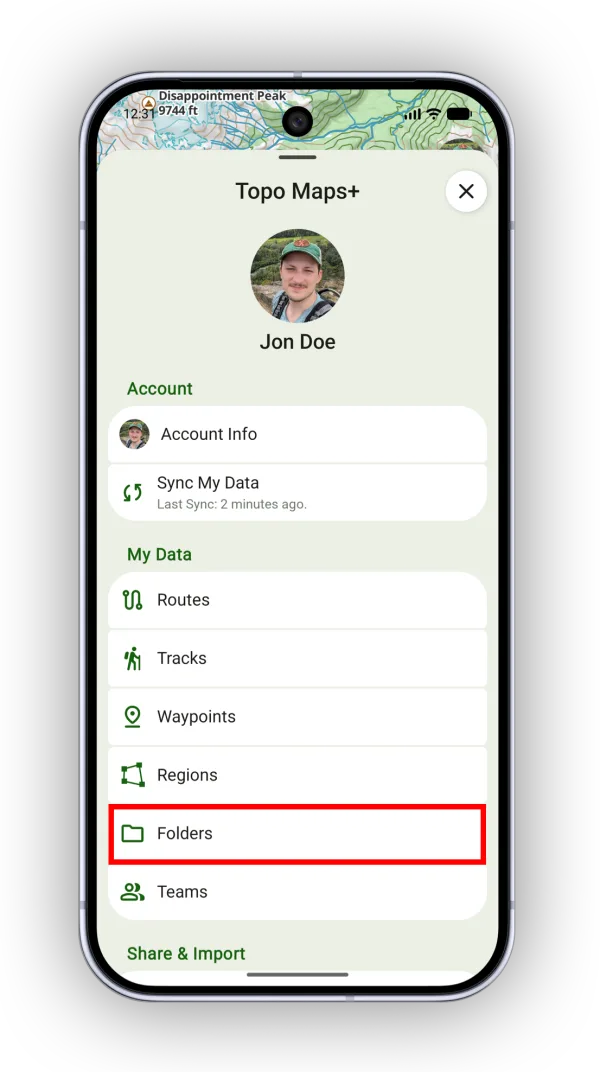

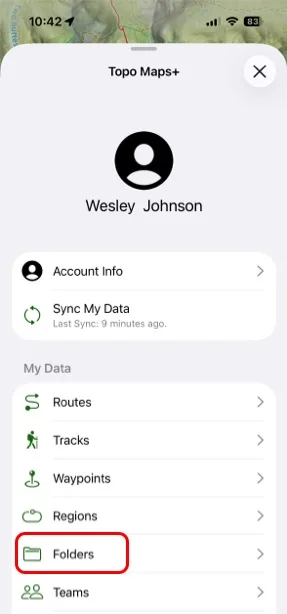

    Folders in the account menuFolders in the account menu
    Tap and hold the folder, then tap Export Folder. Or open the folder, tap the More (⋯) button, and tap Export Folder. Tap the more icon on the folder you want (or tap and hold it), then tap Export.

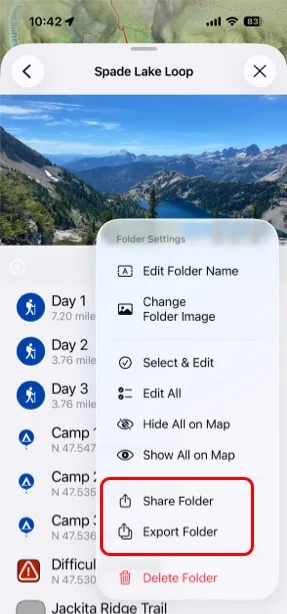

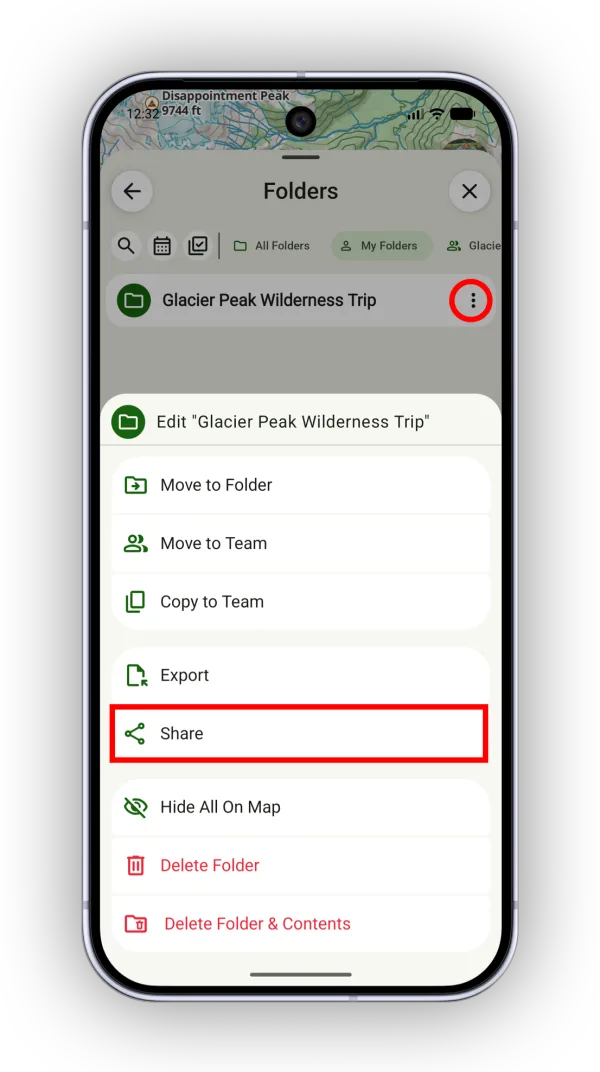

    The folder menu with Export and Share optionsThe folder menu with Export and Share options

How to export everything visible on the map

You can also export all of your saved data that's currently shown on the map.

  1. Tap the Share button in the toolbar, then tap Export Data.

    Export Data in the Share menu, with Share Map, Share to Team, Live Location Sharing, Export PDF Map, and Print Map
    Shown on iPhone — Android looks slightly different.
  2. Use the filter button at the top to choose Visible Data on Screen, All Data, or a team's data. Deselect anything you don't want in the file.

    The Export Data screen with the Visible Data on Screen filter, the KML format button, File Name, the Include Elevations switches, and your data selected by type
    Shown on iPhone — Android looks slightly different.
  3. Tap the format button and choose KML, GPX, Shapefile, or GeoJSON. Shapefile and GeoJSON require an Elite subscription.

    The File Format menu with KML, GPX, Shapefile, and GeoJSON
    Shown on iPhone — Android looks slightly different.
  4. Optionally change the File Name, then tap Export.

  1. Tap the Share button in the toolbar.

  2. Tap Export KML or Export GPX.

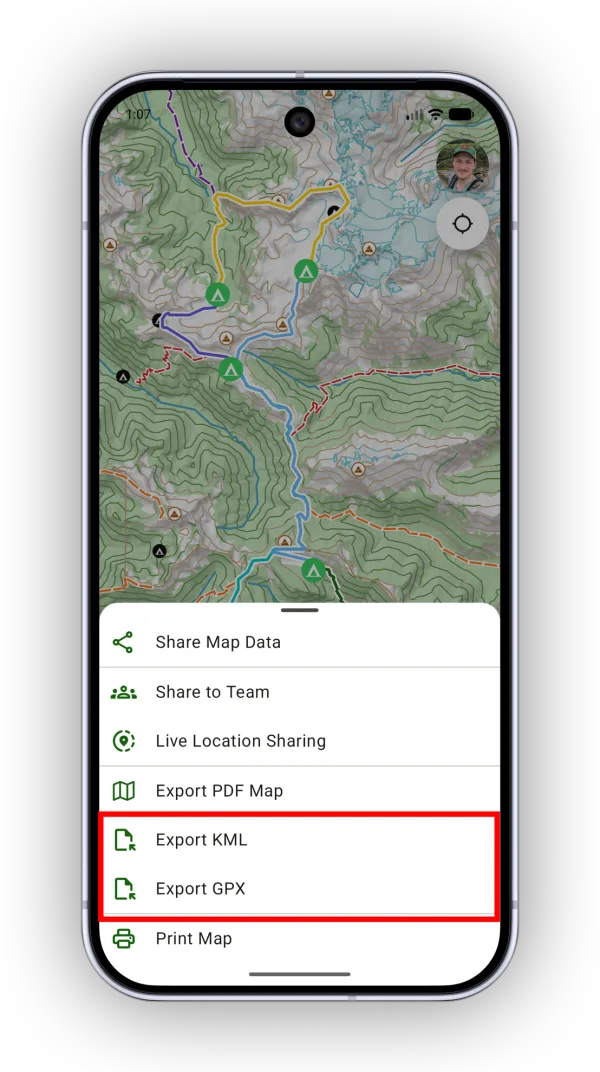

    Export KML and Export GPX in the Share menu
    Shown on Android — iPhone looks slightly different.
  3. Everything on screen is selected by default. Deselect anything you don't want in the file, then export it.

Export options

  • Include Elevations in Tracks and Include Elevations in Routes: Add the elevation to each point in a KML, GPX, or GeoJSON file. These appear when your export includes tracks or routes. Tracks include elevations by default in GPX and GeoJSON. In KML, turning these on lets Google Earth show the file's own elevations instead of draping the line on its terrain.
  • GPX files can't hold regions. If your export includes regions, Topo Maps+ offers to Export data using KML or Export data without regions.
  • Shapefile exports a .zip file with separate shapefiles for points, lines, and polygons, without attributes. To export a data layer with its attributes, see Shapefiles.
